Forward Facing Sonar: The Ultimate Guide for Anglers

Fishing has always been a blend of skill, patience, and the right technology. Over the years, advancements in sonar have given anglers a better understanding of what’s happening beneath the surface. But no technology has revolutionized the sport quite like Forward Facing Sonar (FFS).

Unlike traditional sonar systems that show past data, FFS provides real-time imaging, allowing anglers to see fish movements, structure, and even how fish react to their bait—all before making a cast. This breakthrough has completely changed the way both recreational and competitive anglers approach the water, making it easier to locate and target fish with unmatched precision.

Forward Facing Sonar has quickly become a hot topic in the fishing world. While some anglers swear by it for increasing their catch rates, others debate its impact on the sport, especially in tournament settings. Love it or hate it, FFS is here to stay, and understanding how to use it effectively is now an essential part of modern fishing.

In this guide, we’ll break down everything you need to know about Forward Facing Sonar—from how it works, the major systems available, and the pros and cons, to how to choose the best setup for your fishing style. We’ll also highlight the importance of a solid mount for your FFS system and how companies like BeatDown Outdoors offer mounting solutions that enhance sonar performance.

Whether you’re a seasoned tournament angler or just getting started with sonar technology, this guide will ensure you have all the knowledge you need to master Forward Facing Sonar and make the most of your time on the water.

What Is Forward Facing Sonar and How Does It Work?

At its core, Forward Facing Sonar (FFS) is an advanced sonar system that allows anglers to see a real-time, forward-facing view of what’s happening underwater. Unlike traditional sonar, which scans beneath or to the sides of the boat and provides historical data, FFS constantly updates live, showing fish, structure, and movement as it happens.

How Forward Facing Sonar Works

FFS uses a specialized transducer that emits high-frequency sonar waves in a forward-facing direction. These waves bounce off objects in the water and return to the transducer, where the sonar unit translates the data into a live image on the screen. This allows anglers to see fish movements, determine their size, and even watch how they react to different lures—all in real-time.

Compared to traditional sonar types:

• 2D Sonar (CHIRP Sonar): Provides a historical view of what has passed under the boat but lacks real-time tracking.

• Down Imaging: Offers a detailed, vertical scan directly below the boat, useful for structure but not for tracking moving fish.

• Side Imaging: Gives a broad, horizontal view on either side of the boat, great for locating structure but not for precise targeting.

Why Real-Time Sonar Is a Game Changer

The biggest advantage of FFS is that it eliminates the guesswork. Instead of casting blindly, anglers can now:

• Pinpoint fish locations before making a cast.

• Watch how fish react to different lures and presentations.

• Determine fish behavior patterns in real-time.

• Adjust strategies instantly based on what they see on the screen.

This level of precision is why FFS has become one of the most powerful tools in modern fishing. Anglers can target individual fish, see how they respond to movement, and make quick decisions that dramatically improve catch rates.

The Three Major Forward-Facing Sonar Systems

While several brands have entered the forward-facing sonar market, three stand out as the industry leaders: Garmin LiveScope, Lowrance ActiveTarget 2, and Humminbird MEGA Live. Each has unique strengths, and choosing the right one depends on your fishing style, preferences, and existing electronics setup.

Garmin LiveScope

Garmin was the first major brand to introduce forward-facing sonar to the mainstream fishing world, and its LiveScope system quickly became the gold standard

Key Features and Strengths

• Real-time imaging with high clarity – Allows anglers to see fish and structure with exceptional detail.

• Multiple viewing modes – Includes Forward Mode (scans ahead), Down Mode (scans below), and Perspective Mode (a wide forward-facing view).

• User-friendly interface – Compatible with Garmin’s high-end GPSMAP and ECHOMAP Ultra displays.

• Active software updates – Garmin frequently improves the system with updates that enhance clarity and functionality.

Best Use Cases and Angler Feedback

Garmin LiveScope is a favorite among bass and crappie anglers because of its responsiveness and clarity. Tournament anglers rely on it to target suspended fish and watch how they interact with different baits in real-time. Many consider it the most refined and widely used FFS system on the market today.

Lowrance ActiveTarget 2

Lowrance’s answer to LiveScope is ActiveTarget 2, an upgraded version of the original ActiveTarget system. It has gained traction among competitive anglers for its detailed imagery and smooth tracking.

How It Stacks Up Against the Competition

• Sharper target separation – ActiveTarget 2 provides incredible detail, making it easier to distinguish between individual fish.

• Faster refresh rates – This improves the real-time experience, giving smoother movement on-screen.

• Three viewing modes – Just like LiveScope, ActiveTarget 2 offers Forward, Down, and Scout (Perspective) modes.

• Best integration with Lowrance units – Works seamlessly with HDS PRO, HDS LIVE, and Elite FS displays.

Why Some Anglers Prefer It

Lowrance fans appreciate the ActiveTarget 2 for its faster refresh rate and slightly clearer image resolution in certain conditions. ActiveTarget 2 is often the best choice for full integration if you already run a Lowrance system on your boat.

Humminbird MEGA Live

Humminbird entered the FFS market with MEGA Live, bringing their signature MEGA Imaging clarity to forward-facing sonar.

Unique Advantages and Ideal Fishing Situations

• Industry-leading clarity – Humminbird’s MEGA Imaging delivers some of the sharpest details of fish and structure.

• Three viewing modes – Forward, Down, and Landscape Mode (similar to Perspective Mode).

• Best integration with Minn Kota and Humminbird electronics – MEGA Live offers the best ecosystem integration if you run Humminbird graphs and a Minn Kota trolling motor.

Who Should Choose MEGA Live?

Anglers who already use Humminbird electronics will benefit the most from MEGA Live. It seamlessly connects with Humminbird SOLIX, APEX, and XPLORE units and works in sync with Minn Kota trolling motors, offering features like Follow-the-Contour sonar tracking.

Which One Is Right for You?

Each system has its strengths, and choosing the right one depends on:

• Brand Loyalty: If you already run Garmin, Lowrance, or Humminbird electronics, it’s best to stick with the same brand for seamless integration.

• Fishing Style: Bass anglers often prefer LiveScope or ActiveTarget 2 for precise tracking, while crappie anglers love the target separation of ActiveTarget 2 or the clarity of MEGA Live.

• Budget: Prices are comparable, but installation and mounting considerations may affect the total cost.

Regardless of your chosen system, all three offer unmatched real-time sonar capabilities that will take your fishing to the next level.

Pros and Cons of Forward Facing Sonar

Forward Facing Sonar (FFS) has changed the game for anglers, offering unparalleled real-time views of what’s happening below the surface. But like any technology, it comes with both advantages and drawbacks. Understanding these will help you decide if FFS is right for you and how to use it effectively.

Pros of Forward Facing Sonar

1. Real-Time Fish Tracking

Unlike traditional sonar that only shows where fish were, FFS shows where fish are and where they’re going. This allows you to adjust your bait presentation in real-time and increase your chances of getting a bite.

2. Greater Accuracy for Bait Presentation

One of the biggest advantages of FFS is being able to see how fish react to your lure. If a fish follows but doesn’t commit, you can instantly switch up your retrieve speed, bait selection, or presentation angle.

3. Increased Tournament Success

In competitive fishing, efficiency is everything. FFS allows tournament anglers to eliminate unproductive water quickly and focus on high-percentage targets. Many of today’s top professionals credit FFS for their increased success on the water.

4. Better Understanding of Fish Behavior

FFS doesn’t just help you catch more fish—it helps you learn how fish behave in real-time conditions. You’ll see how they react to weather changes, boat movement, and different presentations, making you a better angler overall.

Cons of Forward Facing Sonar

1. High Cost and Learning Curve

FFS is an investment. A full setup—including the sonar unit, transducer, and mounting hardware—can cost well over $2,500 to $4,000. Additionally, it takes time to master reading the screen and interpreting fish behavior accurately.

2. Ethical Concerns in Tournament Fishing

Some anglers believe FFS gives an unfair advantage in tournaments, leading to debates about its place in competitive fishing. Some circuits have even considered restricting or banning it due to concerns about fish populations and sporting fairness.

3. Potential Reliance on Electronics Over Instincts

Some anglers worry that using FFS too much could make them overly dependent on technology instead of using instinct, experience, and traditional fish-finding techniques. While FFS is a powerful tool, it should complement—not replace—an angler’s natural skills.

Is Forward Facing Sonar Worth It?

For serious anglers, FFS is a game-changing tool that provides a significant advantage. However, it’s important to balance technology with skill and recognize that it takes time to learn how to use it effectively. If you’re willing to invest the money and effort, FFS can be one of the most powerful tools in your fishing arsenal.

Choosing the Best Forward-Facing Sonar for Your Fishing Style

Not all Forward Facing Sonar (FFS) systems are created equal, and the best choice depends on what species you target, where you fish, and how you like to fish. Below, we break down the key factors to consider when choosing an FFS setup that matches your fishing style.

Bass Fishing

For bass anglers, FFS is a powerful tool for targeting suspended fish, structure-oriented bass, and even tracking individual fish. Real-time sonar gives you an advantage whether you’re chasing smallmouth in deep water or largemouth near offshore brush piles.

• Best Features to Look For:

• Fast refresh rate for tracking fish movement in real-time.

• High target separation to distinguish between multiple fish.

• Compatibility with mapping and waypoints to mark productive areas.

• Best Systems for Bass Fishing:

• Garmin LiveScope – Excellent for pinpointing bass movement and casting precisely.

• Lowrance ActiveTarget 2 – Great for tracking fish in open water with smooth, real-time movement.

Crappie Fishing

Crappie anglers have arguably embraced FFS more than any other group because it allows them to target individual fish and watch how they react to jigs and live bait. With FFS, you can now hunt specific crappie instead of fishing blindly.

• Best Features to Look For:

• High target separation for picking out crappie from a school.

• Sharp image clarity to identify brush piles and structure.

• Ability to track multiple fish at once.

• Best Systems for Crappie Fishing:

• Lowrance ActiveTarget 2 – Known for its incredible clarity and ability to track individual fish.

• Humminbird MEGA Live – Ideal for anglers already using Humminbird electronics, offering crisp details in brush and cover.

Deepwater & Offshore Fishing

For anglers who target deepwater species like walleye, lake trout, and striped bass, FFS provides an edge by showing bait schools, thermoclines, and suspended fish. Instead of dropping baits blindly, you can watch your lure and adjust in real time to trigger bites.

• Best Features to Look For:

• Long-range sonar reach for scanning deep water.

• Sharp contrast between fish and bait schools.

• Downward scanning capabilities for vertical jigging.

• Best Systems for Deepwater Fishing:

• Garmin LiveScope – Excellent for tracking deepwater fish movement.

• Lowrance ActiveTarget 2 – Provides superb target separation for fish holding in different depths.

Key Considerations When Choosing an FFS System

Before making a purchase, here are some critical factors to consider:

1. Screen Size & Resolution

A larger screen makes it easier to interpret real-time images, especially in bright sunlight or rough water. Most anglers prefer 10-inch or larger displays for maximum visibility.

2. Transducer Placement

Where you mount the transducer affects how you see fish and structure. Some anglers prefer transducers mounted to the trolling motor for a dynamic, real-time view, while others opt for separate pole mounts for more control over the scanning angle.

3. Budget

FFS systems are an investment. If you’re already running a particular brand’s electronics, sticking with that brand can save money and improve integration. Keep in mind that additional mounting and battery upgrades may also be required.

Which Forward-Facing Sonar Should You Choose?

Ultimately, the best FFS system depends on your fishing style and current electronics setup.

• Garmin LiveScope – Best for bass anglers and deepwater fishing.

• Lowrance ActiveTarget 2 – Ideal for crappie fishing and open-water tracking.

• Humminbird MEGA Live – Perfect for Humminbird users and structure fishing.

No matter which system you choose, FFS will change the way you fish by giving you an unprecedented view of what’s happening below the surface.

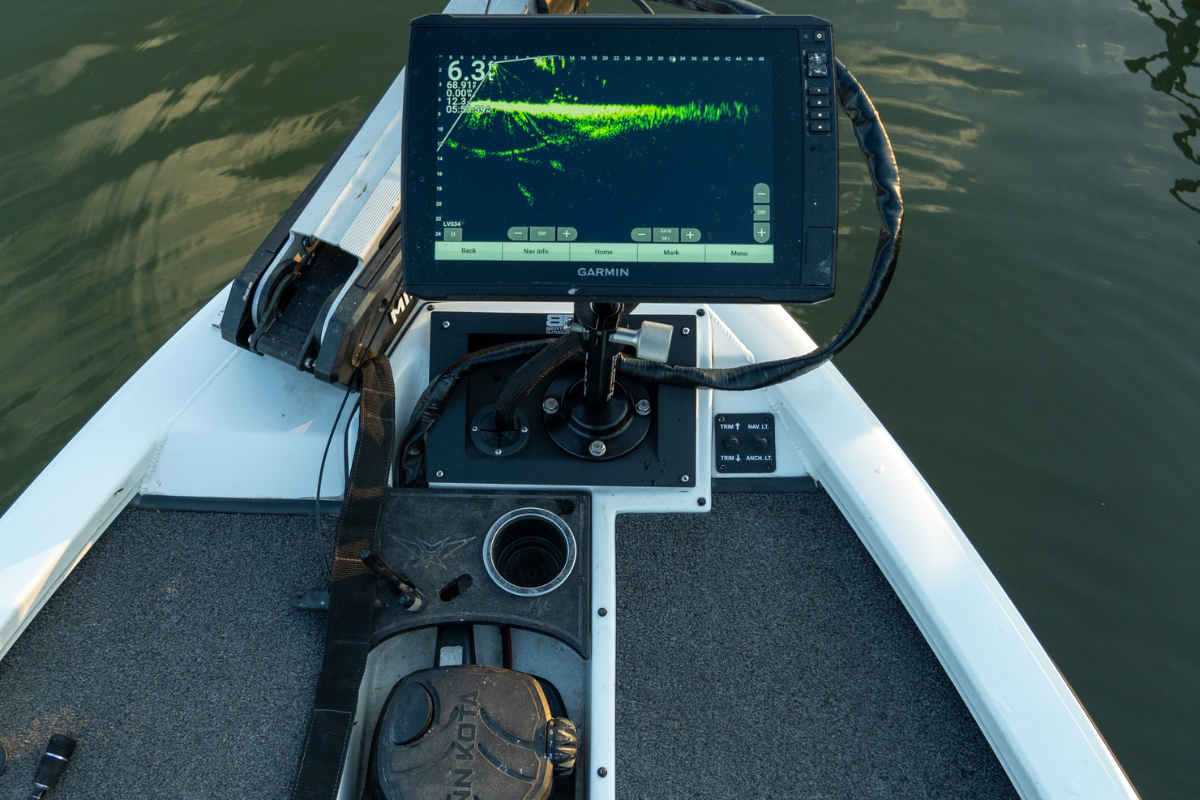

The Importance of a Solid Mount for Your FFS System

A Forward Facing Sonar (FFS) system is only as good as its mounting setup. The transducer and display must be stable, adjustable, and durable to maximize performance, especially in rough water conditions. Without a solid mount, your sonar system can become difficult to use, reducing its effectiveness and making it harder to track fish accurately.

Why Mounting Matters for Forward Facing Sonar

Unlike traditional sonar that remains fixed on the boat, FFS requires precision and adjustability. You need the ability to fine-tune your sonar angle to track fish at different depths and distances. A poorly mounted transducer can lead to:

• Unstable sonar images due to excessive movement.

• Difficulty keeping fish in view when adjusting your trolling motor.

• Unnecessary wear and tear on the transducer and sonar unit.

BeatDown Outdoors: The Best Mounting Solution for FFS

One of the best ways to optimize your FFS system is by investing in a high-quality mount from BeatDown Outdoors. Their mounts are designed specifically for forward-facing sonar users, providing unmatched stability, adjustability, and durability.

Key Benefits of BeatDown Outdoors Mounts:

• Rock-Solid Stability – Built to handle rough water and high-speed movement without shaking or slipping.

• Adjustable Height & Viewing Angles – Allows anglers to fine-tune their screen position for better visibility.

• Heavy-Duty Construction – Made from high-quality materials to withstand extreme conditions.

• Easy Installation & Compatibility – Works with all major FFS brands, including Garmin LiveScope, Lowrance ActiveTarget 2, and Humminbird MEGA Live.

Why a High-Quality Mount Makes a Difference

Many anglers overlook the importance of a properly mounted sonar system, but a high-quality mount offers several key advantages:

• Better Image Stability – Prevents sonar screen shake, especially in rough water.

• Faster Adjustments – Allows you to reposition your sonar quickly to follow moving fish.

• Increased Durability – Protects your expensive FFS investment from unnecessary damage.

Maximizing Your Forward-Facing Sonar Experience

Investing in Forward Facing Sonar (FFS) is just the first step—learning how to fine-tune your settings and interpret what you see is what separates average users from those who truly maximize its potential. Below, we’ll cover the best settings, how to read fish behavior, and common mistakes to avoid so you can get the most out of your FFS system.

Best Settings and Adjustments for Clear Imaging

Dialing in the right sonar settings can make a huge difference in image clarity and target separation. While each brand has unique settings, the following adjustments are key for any FFS system:

1. Gain/Sensitivity

• Adjusting the gain (also called sensitivity) controls how much sonar signal is displayed on the screen.

• Too high: Your screen will be cluttered with interference.

• Too low: You may not see fish or structure clearly.

• Start with auto settings and fine-tune until fish and bait appear clearly without excessive noise.

2. Range Settings

• Keep your range between 60-100 feet for most fishing situations.

• In deeper water, extend the range, but be aware that increasing the range reduces detail.

• Shallow water fishing typically requires a narrower range (under 50 feet) for better target separation.

3. Color Palette Selection

• Each brand offers different color options, and the best choice depends on personal preference and lighting conditions.

• Brighter colors (like amber or blue) tend to show fish and structure more clearly in sunlight.

• Darker color palettes work better in low-light conditions or for anglers who prefer a high-contrast image.

4. Transducer Angle and Positioning

• Ensure your transducer is aligned properly to match the depth and distance you’re scanning.

• If fish appear distorted or unclear, adjust your transducer angle slightly to optimize the sonar beam’s direction.

Understanding Fish Behavior Through Sonar

One of the biggest advantages of FFS is being able to see how fish react in real-time. You can adjust your presentation and improve your catch rate by paying attention to their movements.

1. Tracking Suspended Fish

• Many fish, especially bass and crappie, suspend in the water column.

• Use your FFS to determine their depth and movement patterns before casting.

• If fish are moving quickly, try a faster retrieve to trigger a reaction bite.

2. Watching Fish Respond to Lures

• If a fish follows your bait but doesn’t strike, change something—speed, lure size, or color.

• Some fish will follow for long distances before committing, so be patient and adjust as needed.

3. Identifying Active vs. Inactive Fish

• Fish that are holding tight to structure may not be actively feeding.

• Fish that move toward your bait or are suspended off the bottom are more likely to bite.

• If fish aren’t reacting, try switching spots or changing presentations.

Mistakes to Avoid When Using Forward Facing Sonar

1. Relying Too Much on the Screen

• It’s easy to get glued to your sonar and forget to pay attention to other fishing instincts.

• Use FFS as a tool, but don’t abandon traditional skills like reading water conditions, watching bird activity, and understanding seasonal fish patterns.

2. Over-scanning instead of Fishing

• Some anglers spend too much time searching instead of actually casting and adjusting.

• If you locate fish, don’t keep scanning—drop your bait and see how they react.

3. Ignoring Battery Power and Connections

• FFS systems draw a lot of power, and weak batteries can cause screen lag and poor sonar performance.

• Make sure you have a dedicated, high-quality lithium battery to keep your sonar running at full capacity.

The Future of Forward Facing Sonar

Forward Facing Sonar (FFS) has already revolutionized fishing, but the technology is still evolving. As sonar imaging continues to improve, we can expect even greater clarity, faster refresh rates, and more advanced AI-driven features. However, with these advancements come discussions about ethical concerns and possible regulations in tournament fishing.

Advancements in Sonar Technology

Manufacturers like Garmin, Lowrance, and Humminbird are constantly pushing the limits of sonar technology. Some expected innovations include:

1. Higher Resolution Imaging

• Future FFS systems will likely offer sharper, more detailed images, making it even easier to identify fish and structure.

• We may see 4K-quality sonar displays with extreme clarity.

2. AI and Smart Sonar Interpretation

• AI-driven sonar could help anglers detect fish species, size, and behavior patterns automatically.

• Future systems may highlight feeding vs. inactive fish, saving anglers time by focusing on high-percentage targets.

3. Longer-range and Multi-Directional Scanning

• Current FFS systems have limited forward range, but upcoming technology could increase scanning distance while maintaining high resolution.

• Some brands are experimenting with 360-degree forward-facing views, providing an even broader picture of the underwater environment.

Industry Trends and Possible Regulations

As FFS becomes more advanced, some anglers and tournament officials are questioning its impact on the sport.

1. Ethical Concerns in Tournament Fishing

• Many argue that FFS gives an unfair advantage, as anglers can now hunt individual fish in real-time.

• Some tournament circuits are enacting restrictions, and certain events have already banned FFS use to level the playing field.

• However, others believe that FFS is just another tool—similar to how GPS, side imaging, and traditional sonar were once considered controversial but are now standard.

2. Potential Impact on Fish Populations

• With anglers becoming more efficient at targeting and catching fish, some worry about overharvesting and increased pressure on certain fisheries.

• Fisheries managers may introduce new catch limits or regulations to prevent overfishing, particularly in popular tournament waters.

3. Integration with Other Technologies

• Future FFS units will likely integrate even more seamlessly with trolling motors, autopilot systems, and advanced mapping software.

• Some boats may eventually feature fully automated fish-tracking systems, where sonar, motors, and AI work together to keep anglers on fish with minimal effort.

How FFS Continues to Evolve the Sport

Despite the debates, one thing is certain—FFS is here to stay, and it will continue shaping the future of fishing.

• Recreational anglers are using it to find fish faster and learn more about fish behavior.

• Tournament anglers are refining their techniques to maximize their effectiveness while adapting to changing rules.

• Manufacturers are constantly improving the technology, ensuring that sonar remains a key part of the modern fishing experience.

As Forward Facing Sonar continues to advance, anglers must balance technology with skill, conservation, and ethical fishing practices to ensure the sport remains sustainable for future generations.

Final Thoughts on Forward Facing Sonar

Forward Facing Sonar has changed the way we fish, offering real-time imaging, unmatched precision, and deeper insights into fish behavior. Whether you’re a weekend angler or a tournament pro, understanding how to use FFS effectively can make a huge difference in your success on the water.

Key Takeaways from This Guide

• FFS provides live, real-time views of fish and structure, giving anglers a major advantage.

• Garmin LiveScope, Lowrance ActiveTarget 2, and Humminbird MEGA Live are the top FFS systems, each with unique strengths.

• Proper mounting is crucial for stability and performance—high-quality mounts like those from BeatDown Outdoors can improve your sonar experience.

• Fine-tuning settings and reading fish behavior is key to maximizing your FFS system’s effectiveness.

• The future of FFS will bring even more advanced features, but anglers must balance technology with ethical fishing practices.

Why Every Angler Should Consider Forward Facing Sonar

If you want to take your fishing to the next level, Forward Facing Sonar is one of the best investments you can make. It helps you:

• Find fish faster and eliminate unproductive water.

• Watch how fish react to your bait in real time.

• Make precise adjustments to catch more fish.

Whether you’re targeting bass, crappie, or deepwater species, FFS will change how you fish forever.

Upgrade Your FFS Setup with BeatDown Outdoors

To get the most out of your FFS system, you need a solid mounting solution. BeatDown Outdoors offers premium mounts designed to provide stability, adjustability, and durability for all major Forward Facing Sonar units.
